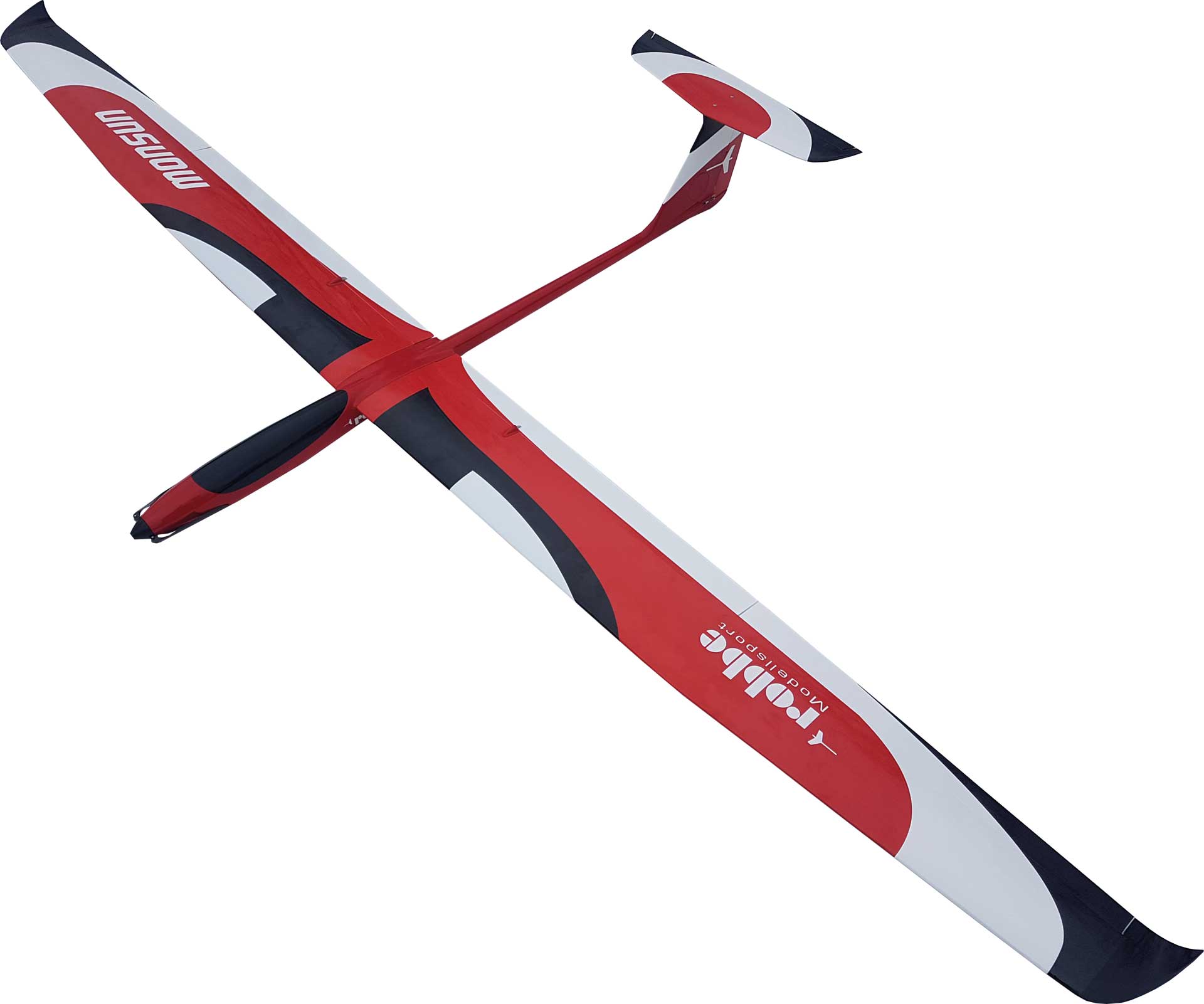

Robbe Modellsport Monsoon V2 ARF Styro/GfK/Abachi Surface
Product number:
2663
Robbe Modellsport RO-POXY 5 MINUTES EPOXY RESIN ADHESIVE 200G PER 100G RESIN+HARDENER
Content: 0.2 kg (€96.00* / 1 kg)
€19.20*
- Model Monsun V2 largely prefabricated
- painted GRP/CfK fuselage
- ready Oracover covered, Styro/GfK/Abachi wing
- ready Oracover covered, removable T-tail made of balsa
- small parts (control horns, linkages, clevises, ball heads, covers, etc.)
- Assembly instructions in German/English/French
| Wing-span (mm): | 3000 |
|---|---|
| Flight weight approx. (g): | 2950 |
| Control: | H,S,Q,M,WK |
| Length (mm): | 1480 |
| Manufacturer: | Robbe Modellsport |
| Fuselage: | Carbon/FiberGlass |
| Wings: | Styro/Fiberglass/Abachi |
| Rec. engine: | Ro-Power Torque 3526-870kv |
| Rec. Battery: | 4S/4200mAh LiXX |
| Version: | ARF - ALMOST READY TO FLY |
| Airfoil: | HQ 2,5/9 |
| Flight Skill: | Advanced |
| Build Skill: | Advanced |
| Drive Type: | Electric |
The MONSUN V2 is the successor and the further development of the famous MONSUN. It is a thermal and all-round glider in the compact 3m class with 4-flap wing. The T-tail is hinged backlash-free with a directly installed servo.
The PNP version has servos already installed, electrical connector and original multilocks as wing locks.
The flight characteristics are very good-natured. The MONSUN V2 can be flown as a slow thermal glider or as an all-rounder.
The ready-covered wings are constructed of styro core, glass fiber layers, abachi planking and a carbon fiber reinforced spar. The ratio of weight and strength has been optimally achieved.
The MONSUN V2 is suitable for advanced model pilots.
Features:
Das Produkt Monsun V2 ARF Styro/GfK/Abachi Fläche von Robbe Modellsport in der Kategorie Electric Glider Models hat eine Spannweite von 3000 sowie ein Gewicht von 2950. Die Steuerung des Modells erfolgt über die Funktionen H,S,Q,M,WK. Das Modell ist als ARF - ALMOST READY TO FLY ausgeführt . Wir empfehlen einen 4S/4200mAh LiXX Akku für dieses Elektroflugmodell.
* Erklärung Steuerfunktionen:
The PNP version has servos already installed, electrical connector and original multilocks as wing locks.
The flight characteristics are very good-natured. The MONSUN V2 can be flown as a slow thermal glider or as an all-rounder.
The ready-covered wings are constructed of styro core, glass fiber layers, abachi planking and a carbon fiber reinforced spar. The ratio of weight and strength has been optimally achieved.
The MONSUN V2 is suitable for advanced model pilots.
Features:
- two-part, ready Oracovered Styro/GfK/Abachi surface with CfK connection
- continuous sandwich spar (carbon-pine-carbon) for maximum bending stiffness
- built-in digital Robbe servos FS-277 with ball bearings and metal gearbox (PNP only)
- ready-made wiring of all servos with MPX 6-pin connectors between wing and fuselage (PNP only)
- ready ironed rudder flaps with mounted rudder horns
- painted GRP fuselage with built-in wooden formers and CfK reinforcements
- powerful Ro-Power Torque 3526 870 K/V outrunner, optimized for 4S (PNP only)
- large canopy for easy battery change and RC installation
- ready hinged rudder flaps
- prefabricated rudder linkages with linkage parts from German production
- pre-cut servo well and linkage covers
- anodized 38mm aluminum spinner with straight center section (PNP only)
- high-strength carbon fiber airscrew 12x8" (PNP only)
- modern, highly visible design
Das Produkt Monsun V2 ARF Styro/GfK/Abachi Fläche von Robbe Modellsport in der Kategorie Electric Glider Models hat eine Spannweite von 3000 sowie ein Gewicht von 2950. Die Steuerung des Modells erfolgt über die Funktionen H,S,Q,M,WK. Das Modell ist als ARF - ALMOST READY TO FLY ausgeführt . Wir empfehlen einen 4S/4200mAh LiXX Akku für dieses Elektroflugmodell.
* Erklärung Steuerfunktionen:
- H ... Höhenruder
- S ... Seitenruder
- Q ... Querruder
- M ... Motorsteuerung
- V ... Vektorsteuerung
- LK ... Landeklappen
- SK ... Störklappen
- WK ... Wölbklappen
- EZFW ... Einziehfahrwerk
- SKU ... Schleppkupplung
- ( ) ... optional - in Klammer geschriebene Steuerfunktionen sind bei dem beschriebenen Modell optional verfügbar
