Robbe Modellsport Sapphire ARF 2,8m Styro/glasf./Abachi wing
Product number:
2677
Robbe Modellsport RO-POXY 5 MINUTES EPOXY RESIN ADHESIVE 200G PER 100G RESIN+HARDENER
Content: 0.2 kg (€96.00* / 1 kg)
€19.20*

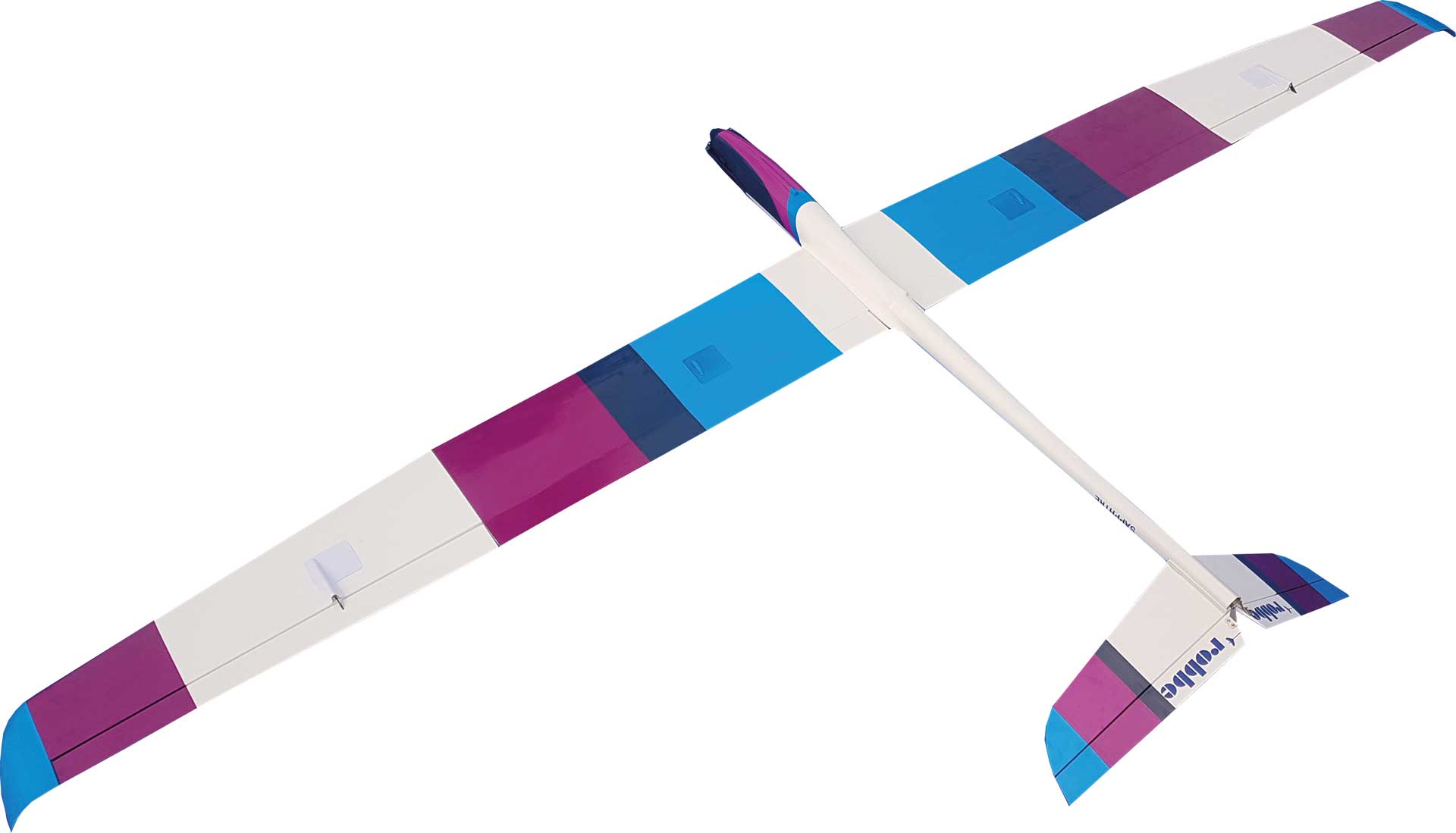

- Model Sapphire largely prefabricated
- painted GRP/CFRP fuselage
- finished Oracover covered, Styro/GfK/Abachi wing
- finished Oracover covered, removable V-tail made of balsa
- small parts (control horns, linkages, clevises, ball heads, covers, etc.)
- Instructions in German/English/French
| Wing-span (mm): | 2900 |
|---|---|
| Flight weight approx. (g): | 2480 |
| Control: | H,S,Q,M,WK |
| Length (mm): | 1290 |
| Manufacturer: | Robbe Modellsport |
| Fuselage: | Carbon/FiberGlass |
| Wings: | Styro/Fiberglass/Abachi |
| Rec. engine: | Ro-Power Torque 3526-870kv |
| Rec. Battery: | 4S/2300mAh LiXX |
| Version: | ARF - ALMOST READY TO FLY |
| Airfoil: | HQ 2,5/9 |
| Flight Skill: | Advanced |
| Build Skill: | Advanced |
| Drive Type: | Electric |
The SAPPHIRE is the new thermal and all-round glider at Robbe Modellsport. The V-tail increases its maneuverability when thermal circling. The PNP version has servos already installed, electrical connector and original multilocks as wing locks.

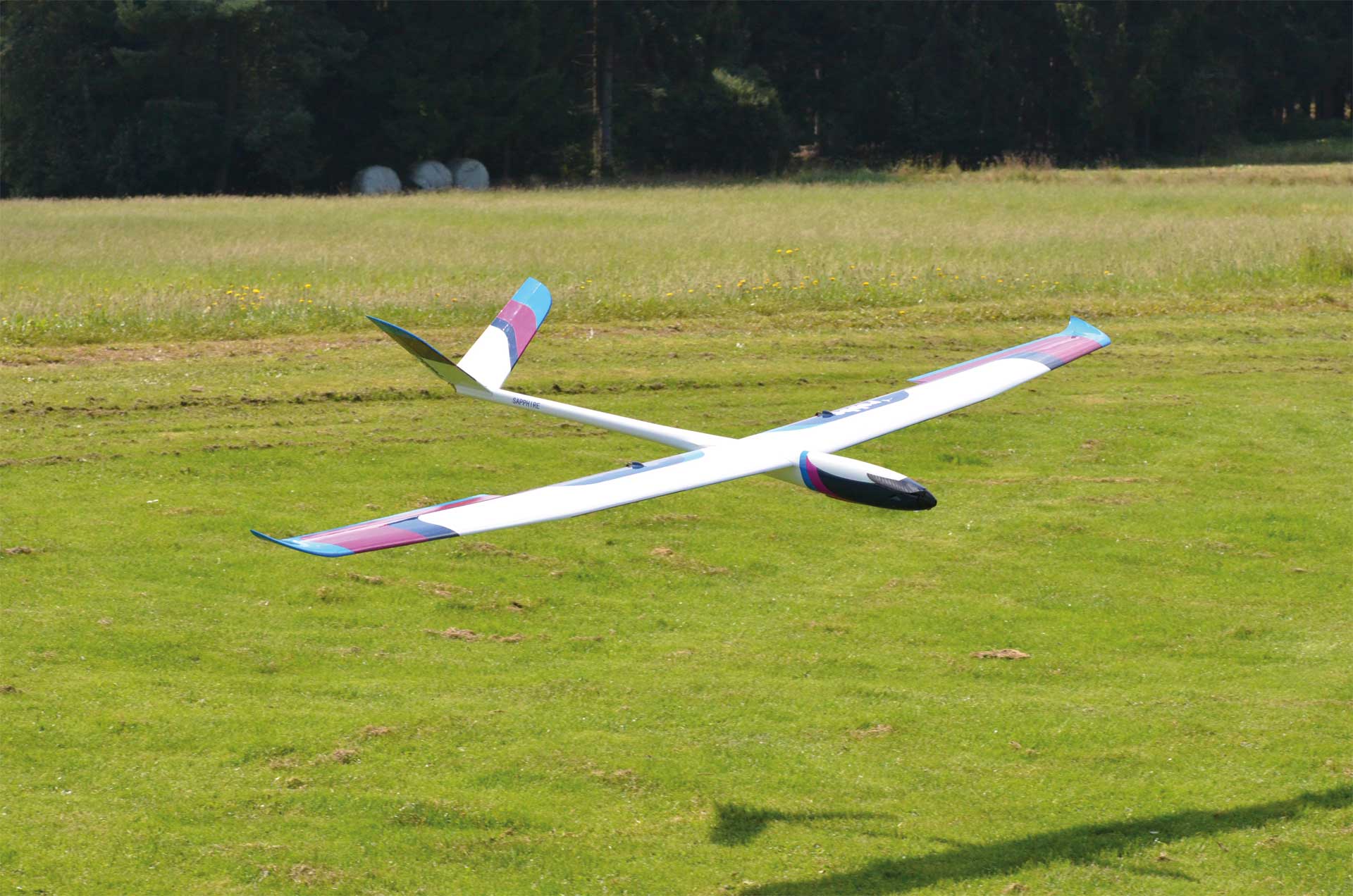

The flight characteristics can be described as very good-natured. The SAPPHIRE can be flown as a slow thermal glider or as an all-rounder.
The ready-covered wings are constructed of styro core, fiberglass plies, abachi planking and a carbon fiber reinforced spar. The ratio of weight and strength has been optimally achieved.
The SAPPHIRE is suitable for advanced model pilots.
Features:
Das Produkt Sapphire ARF 2,9m Styro/GfK/Abachi von Robbe Modellsport in der Kategorie Electric Glider Models hat eine Spannweite von 2900 sowie ein Gewicht von 2480. Die Steuerung des Modells erfolgt über die Funktionen H,S,Q,M,WK. Das Modell ist als ARF - ALMOST READY TO FLY ausgeführt . Wir empfehlen einen 4S/2300mAh LiXX Akku für dieses Elektroflugmodell.
* Erklärung Steuerfunktionen:
The flight characteristics can be described as very good-natured. The SAPPHIRE can be flown as a slow thermal glider or as an all-rounder.
The ready-covered wings are constructed of styro core, fiberglass plies, abachi planking and a carbon fiber reinforced spar. The ratio of weight and strength has been optimally achieved.
The SAPPHIRE is suitable for advanced model pilots.
Features:
- two-part, ready Oracovered Styro/GfK/Abachi surface with CfK connection
- continuous sandwich spar (carbon-pine-carbon) for maximum bending stiffness
- built-in digital Robbe servos FS-277 with ball bearings and metal gearbox (PNP version only)
- ready-made wiring of all servos with MPX 6-pin connectors between wing and fuselage (PNP version only)
- finished rudder flaps with mounted rudder horns
- painted GRP fuselage with built-in wooden formers and CfK reinforcements
- powerful Ro-Power Torque 3526-870 K/V outrunner, optimized for 4S (PNP version only)
- large canopy for easy battery change
- ready hinged rudder flaps
- prefabricated rudder linkages with linkage parts from German production
- pre-cut servo well and linkage covers
- anodized 38mm aluminum spinner with straight center section (PNP version only)
- high-strength carbon fiber airscrew 13x7" (PNP version only)
- modern, highly visible design
Das Produkt Sapphire ARF 2,9m Styro/GfK/Abachi von Robbe Modellsport in der Kategorie Electric Glider Models hat eine Spannweite von 2900 sowie ein Gewicht von 2480. Die Steuerung des Modells erfolgt über die Funktionen H,S,Q,M,WK. Das Modell ist als ARF - ALMOST READY TO FLY ausgeführt . Wir empfehlen einen 4S/2300mAh LiXX Akku für dieses Elektroflugmodell.
* Erklärung Steuerfunktionen:
- H ... Höhenruder
- S ... Seitenruder
- Q ... Querruder
- M ... Motorsteuerung
- V ... Vektorsteuerung
- LK ... Landeklappen
- SK ... Störklappen
- WK ... Wölbklappen
- EZFW ... Einziehfahrwerk
- SKU ... Schleppkupplung
- ( ) ... optional - in Klammer geschriebene Steuerfunktionen sind bei dem beschriebenen Modell optional verfügbar
