AC/DC Dual mode | Dual channel fast charge
Synchronous Parallel charging | 2.8? IPS LCD Display
AC/DC dual mode
AC /DC dual input meet different use requirements.
Output ? AC /200W, DC /500Wx2.

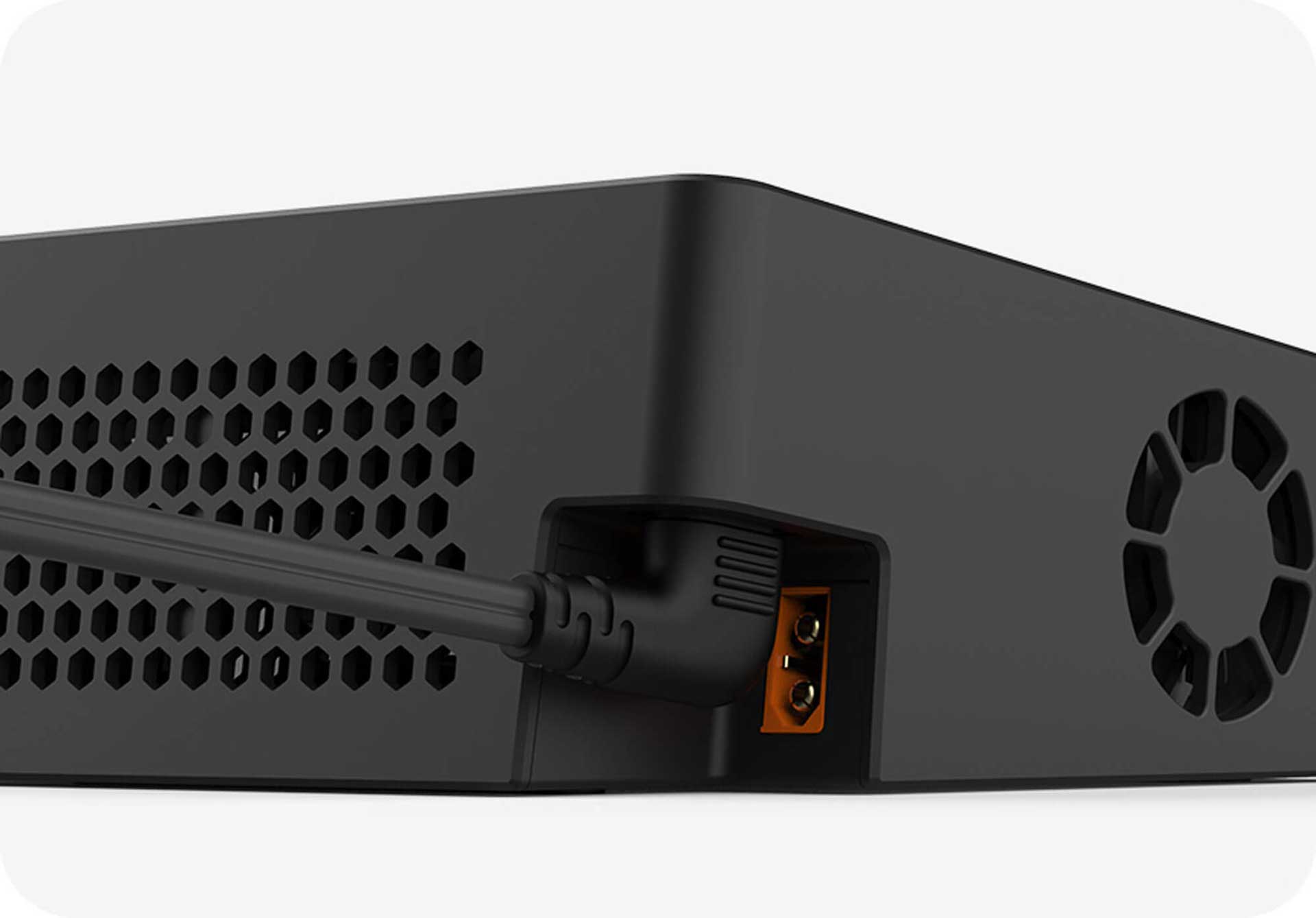

AC/DC Safe access
Fool-proof input interface. Smart design
The DC input port and AC input port are mutually exclusive.
Only one input can be selected in one time,
Ensure the safety operation.
AC/DC dual mode
AC /DC dual input meet different use requirements.
Output ? AC /200W, DC /500Wx2.
High Power Synchronous Dual Channel, with Smart Charging.
Smart High Speed Processor delivers parameter interfere to each port.
Hassle Free with Maximum charging power up to 500W for single port.
Choose ISDT, Powered by Innovation.

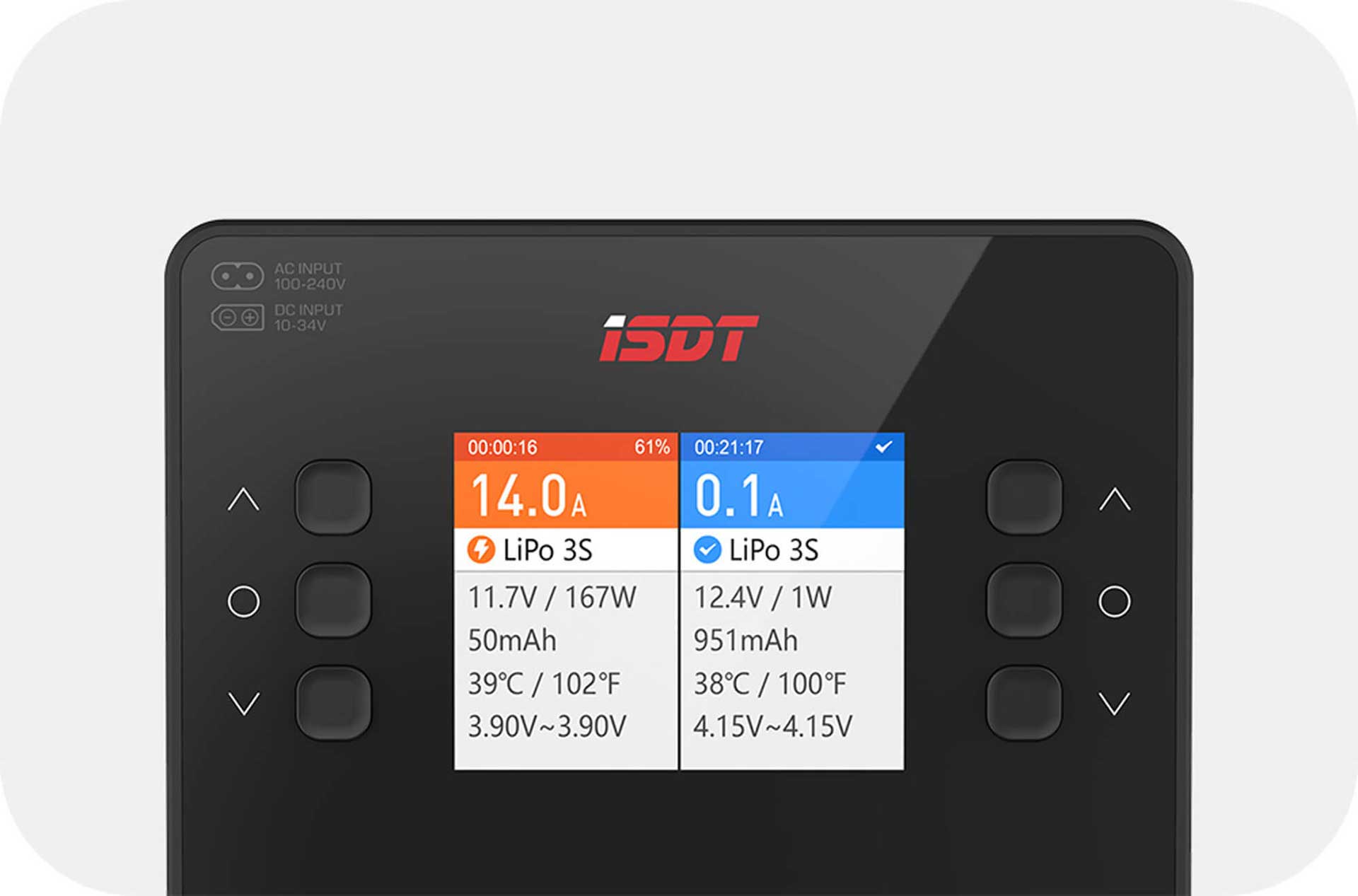

2.8? IPS LCD Display
Low power consumption, 178° visible angle
Display clear and distinct
Even in varies hard environment or angles
As well as in strong sunshine.

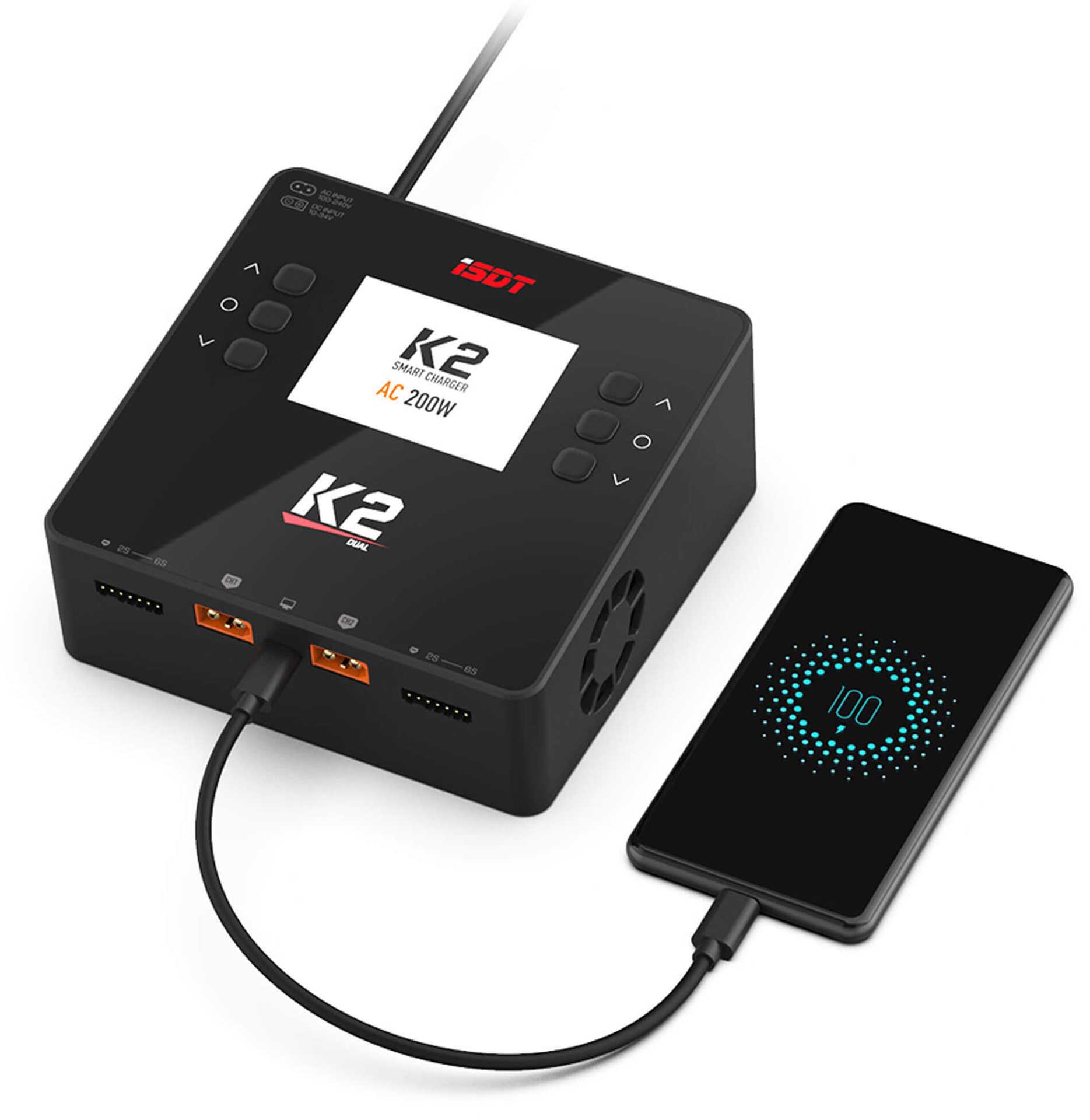

Two-way USB interface
By connecting the charger microUSB port to the PC,
all series can acquire latest firmware upgrading.
It can also output 5V/2A power through the USB Type-C interface,
For charging mobile devices.
Specifications
Input voltage:AC 100~240V / DC 10~30V
Output voltage:DC 1~30V
Max. input current:DC 35A
Charging current:0.2~20A x2
Discharging current:0.2~1.5A x2
Balance current:1.5A/Cell Max
Max. discharging power:15W x2
Max. charging power:AC 200W / DC 500W x2
Abnormal voltage alarm:Support
Incorrect cell count setting alarm:Support
Supported battery types and cell count:LiFe, Lilon, LiPo 1~6S, LiHv 1-6S, Pb 1-12S, NiMH/Cd 1-16S
Parallel charging power and current:800W/35A
Parallel discharge power and current:30W/3A
Working temperature:0~40?
Storage temperature:-20?~60?
Dimension:142x135x64mm
Weight:About 700g
