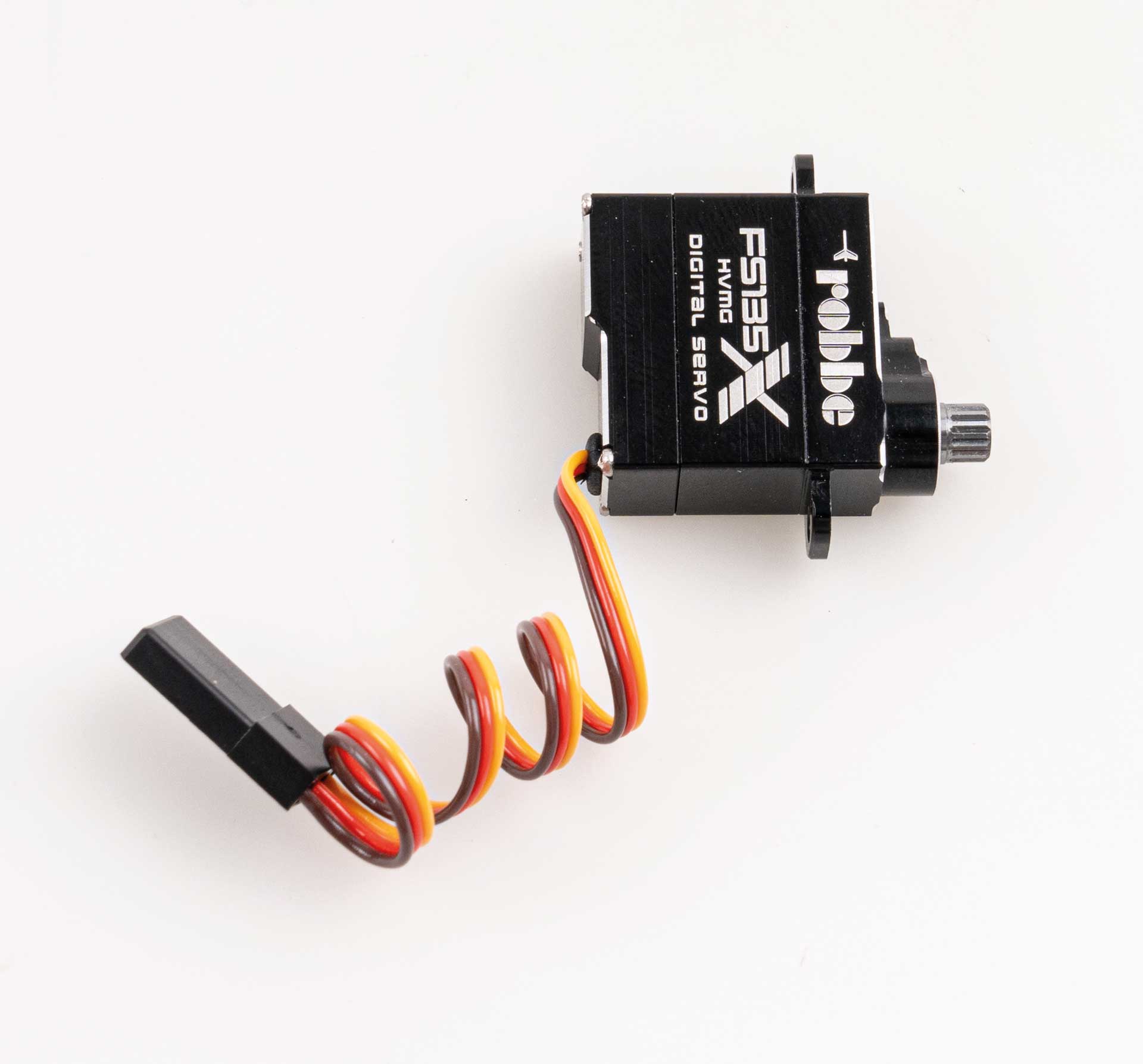

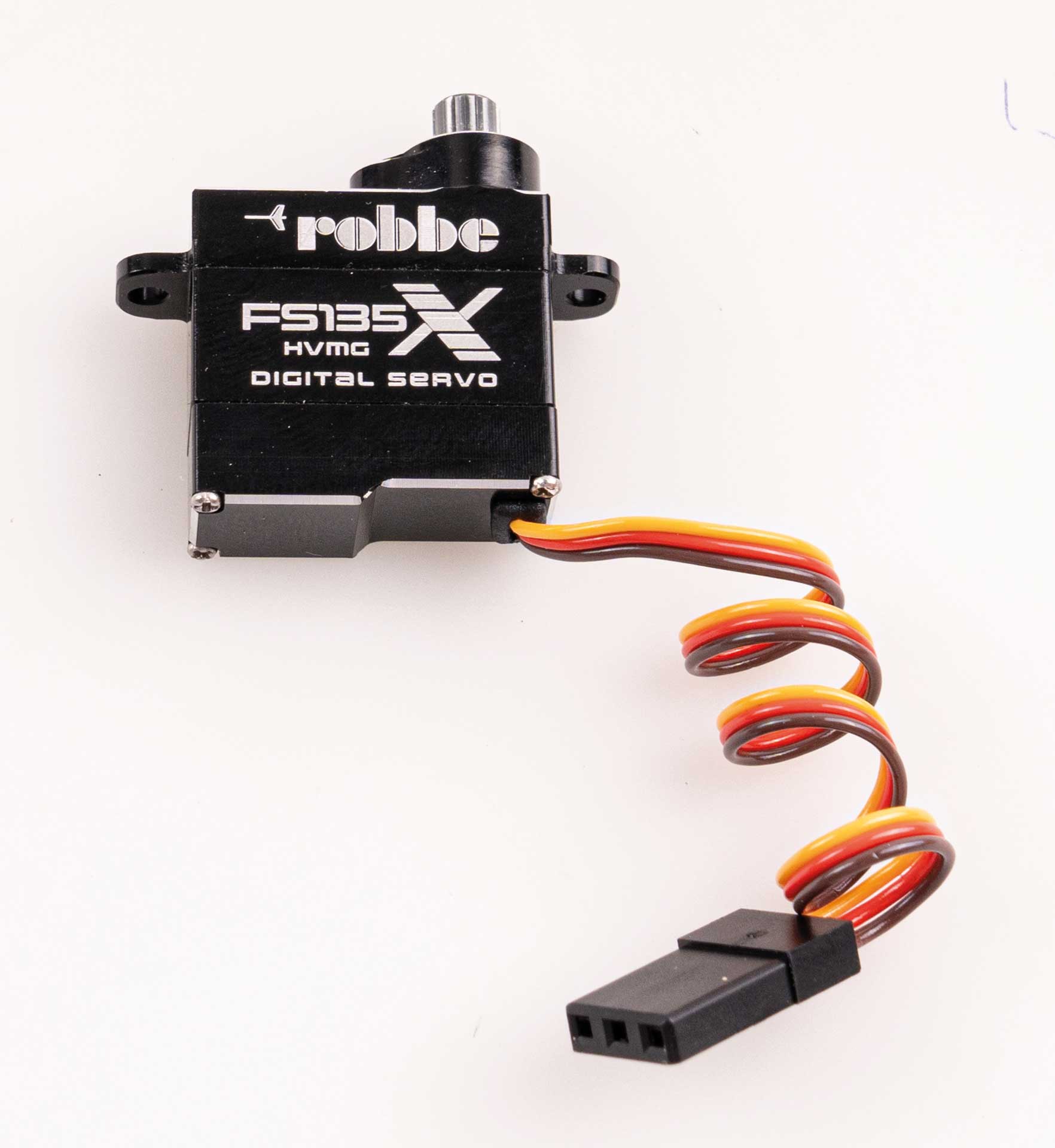

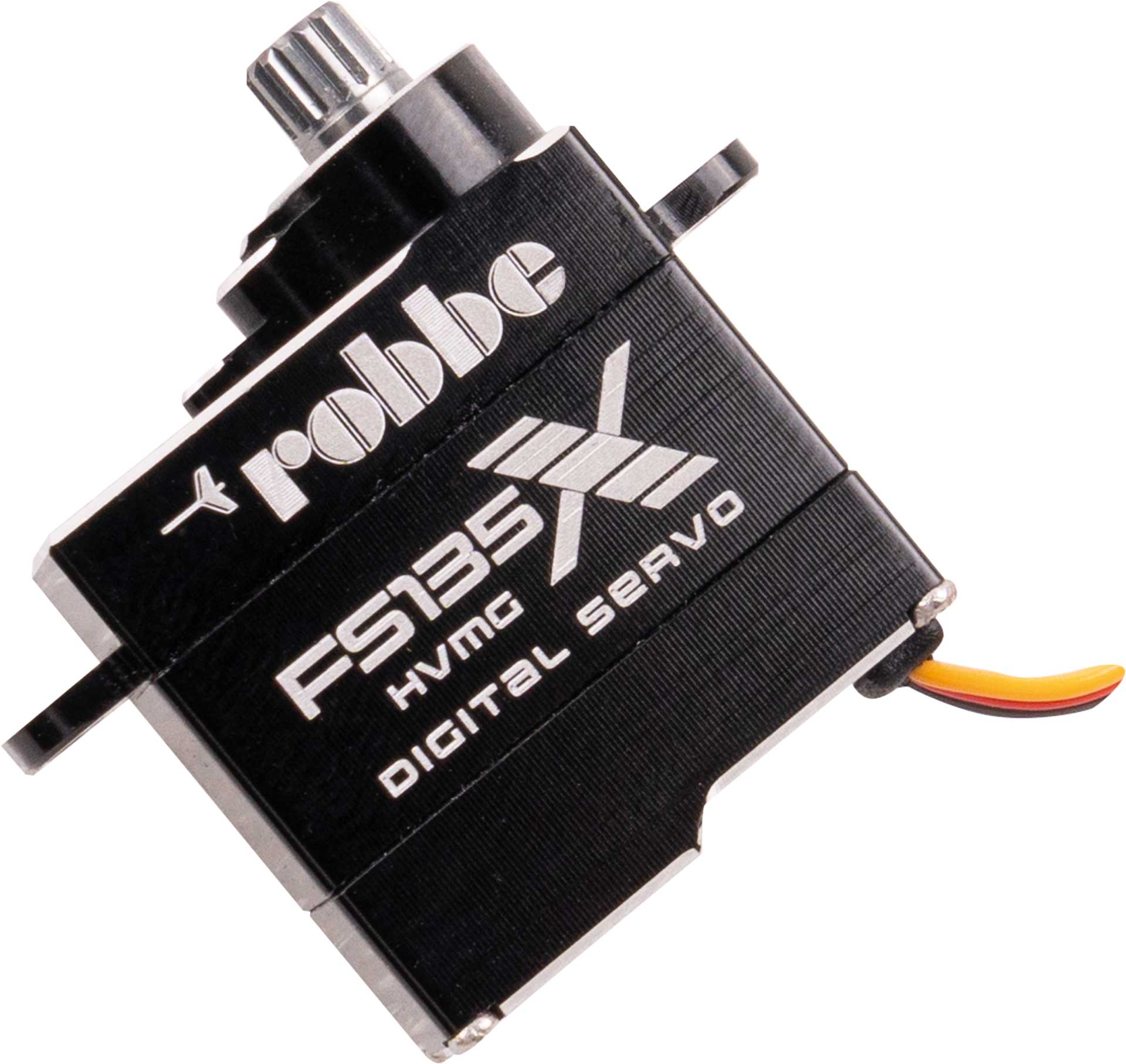

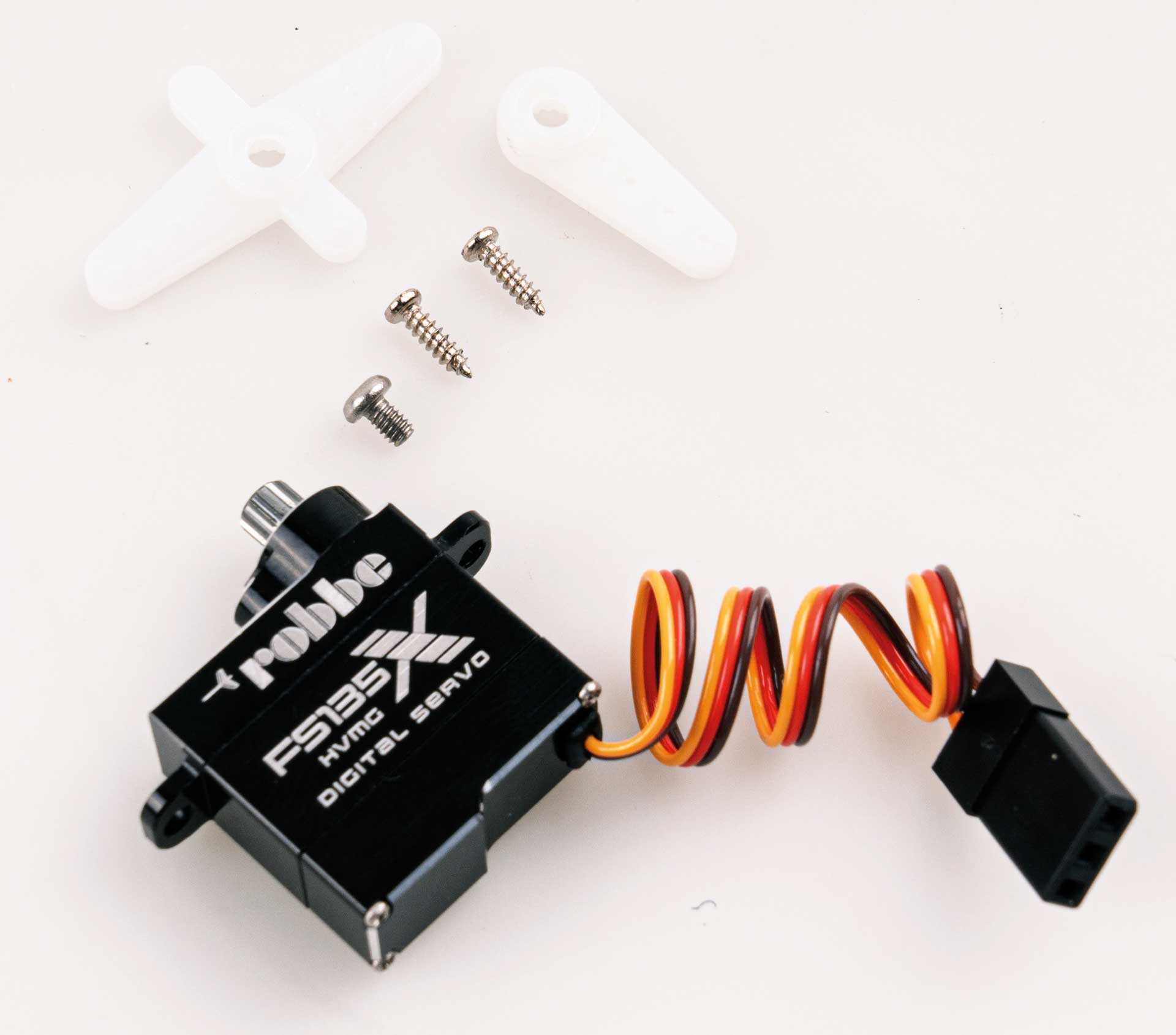

Robbe Modellsport FS 135 X HV Digital Servo mit Softstart
Product number:
9128
GTIN/EAN:
9010189265948
Downloads
Description "Robbe Modellsport FS 135 X HV Digital Servo mit Softstart"
Features:
- HV 2S Lipo operation 8.4V
- Soft start
- M2 servo arm screw
- Ultra flat special servo arm
- 15T output with 4mm diameter
Technical data
| Bearing: | •• |
|---|---|
| Servo Speed sec./60° (6V) HV: | 0,062 |
| Servo Speed sec./60° (7,4V) HV: | 0,055 |
| Servo Speed sec./60° (8,4V) HV: | 0,048 |
| Servo Torque kg/cm (6V) HV: | 1,43 |
| Servo Torque kg/cm (7,4V) HV: | 1,95 |
| Servo Torque kg/cm (8,4V) HV: | 2,17 |
| Gearbox Type: | Metal |
| Weight (g): | 6,9 |
| Length (mm): | 19,6 |
| Wide (mm): | 8 |
| Height (mm): | 22,3 |
| Servo type: | High Voltage |
| Gear tooth: | 15Z/4mm |
| Betriebspannung (V) HV: | 4,8 - 8,4 |
