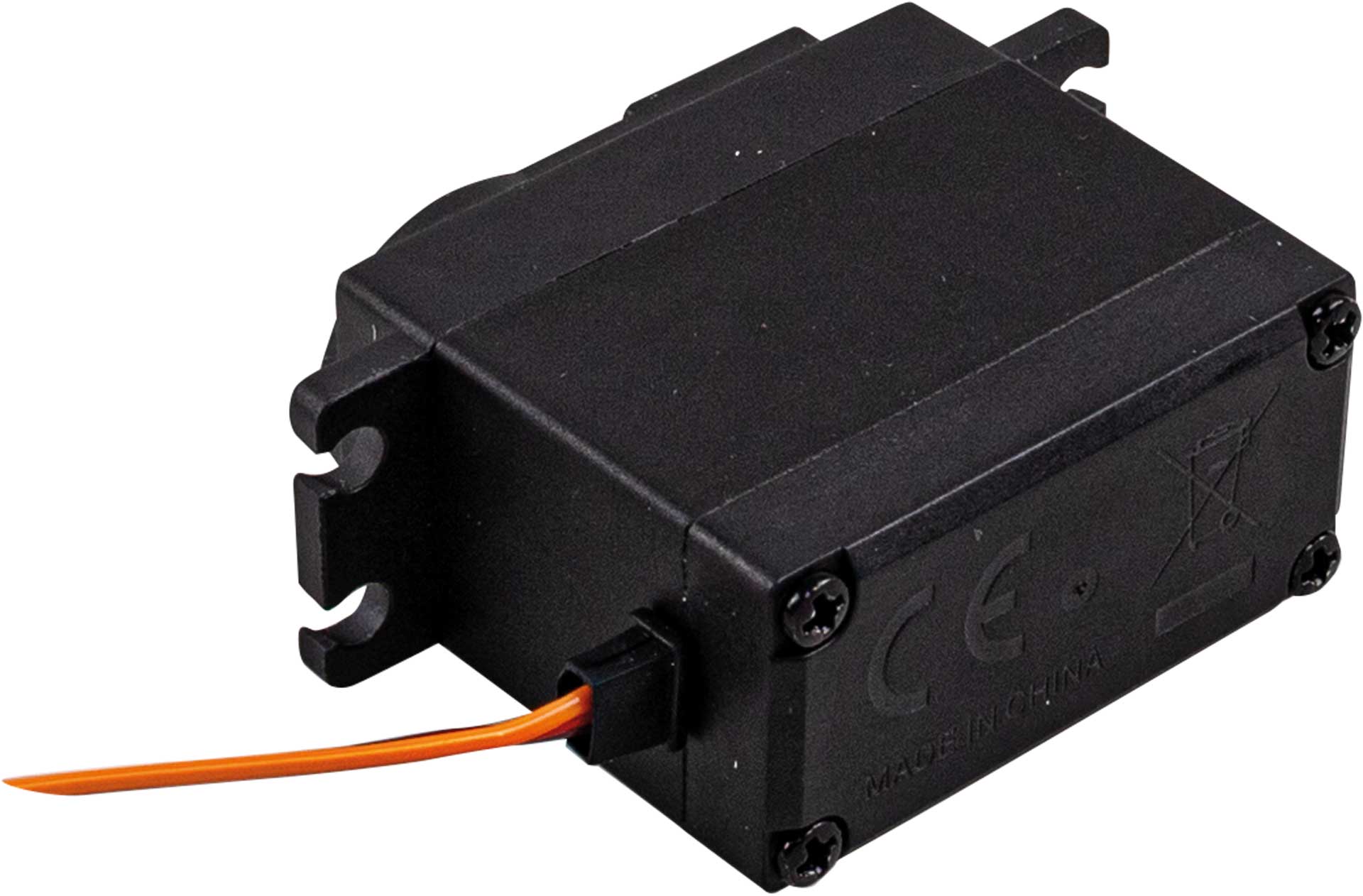

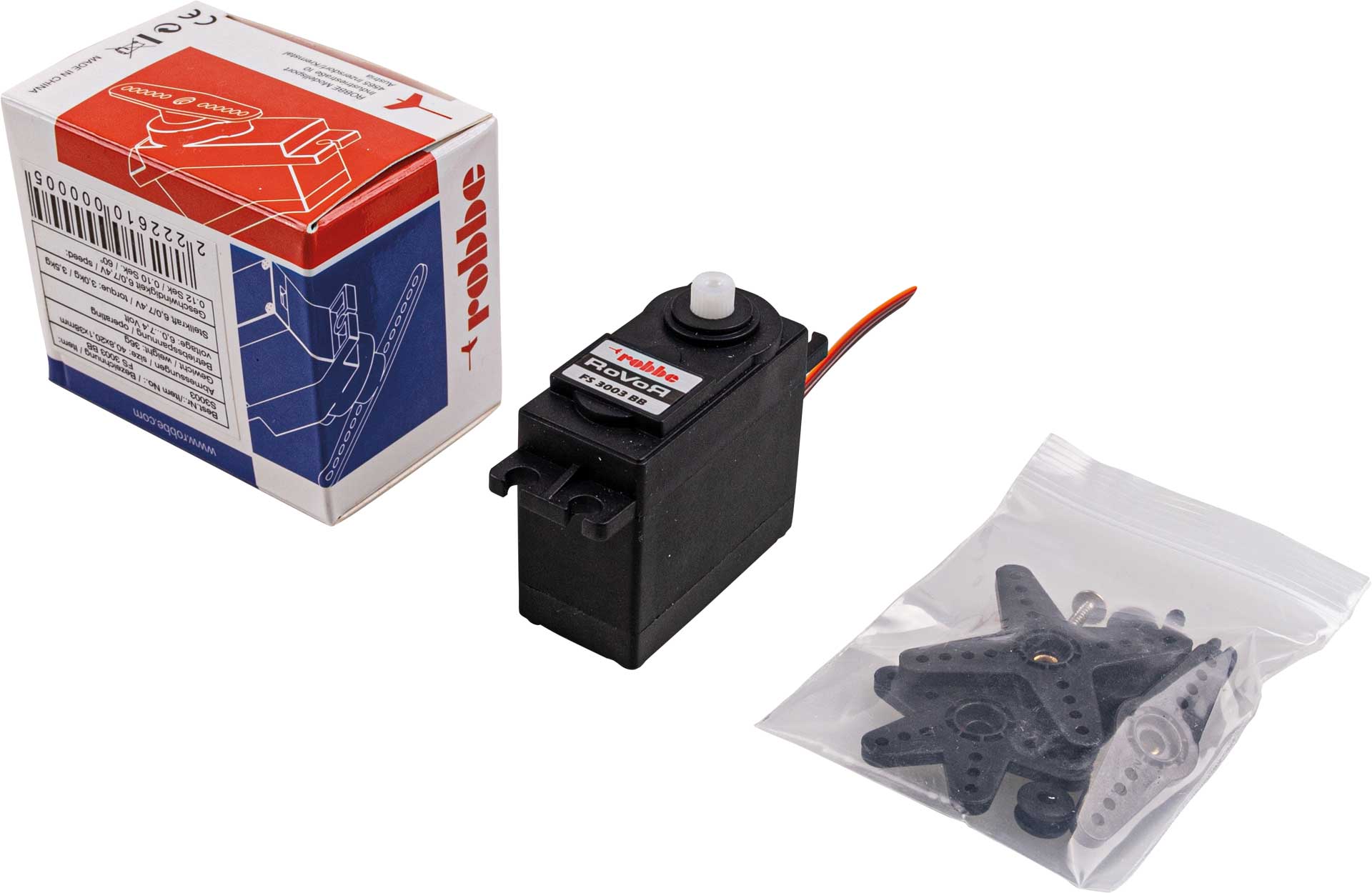

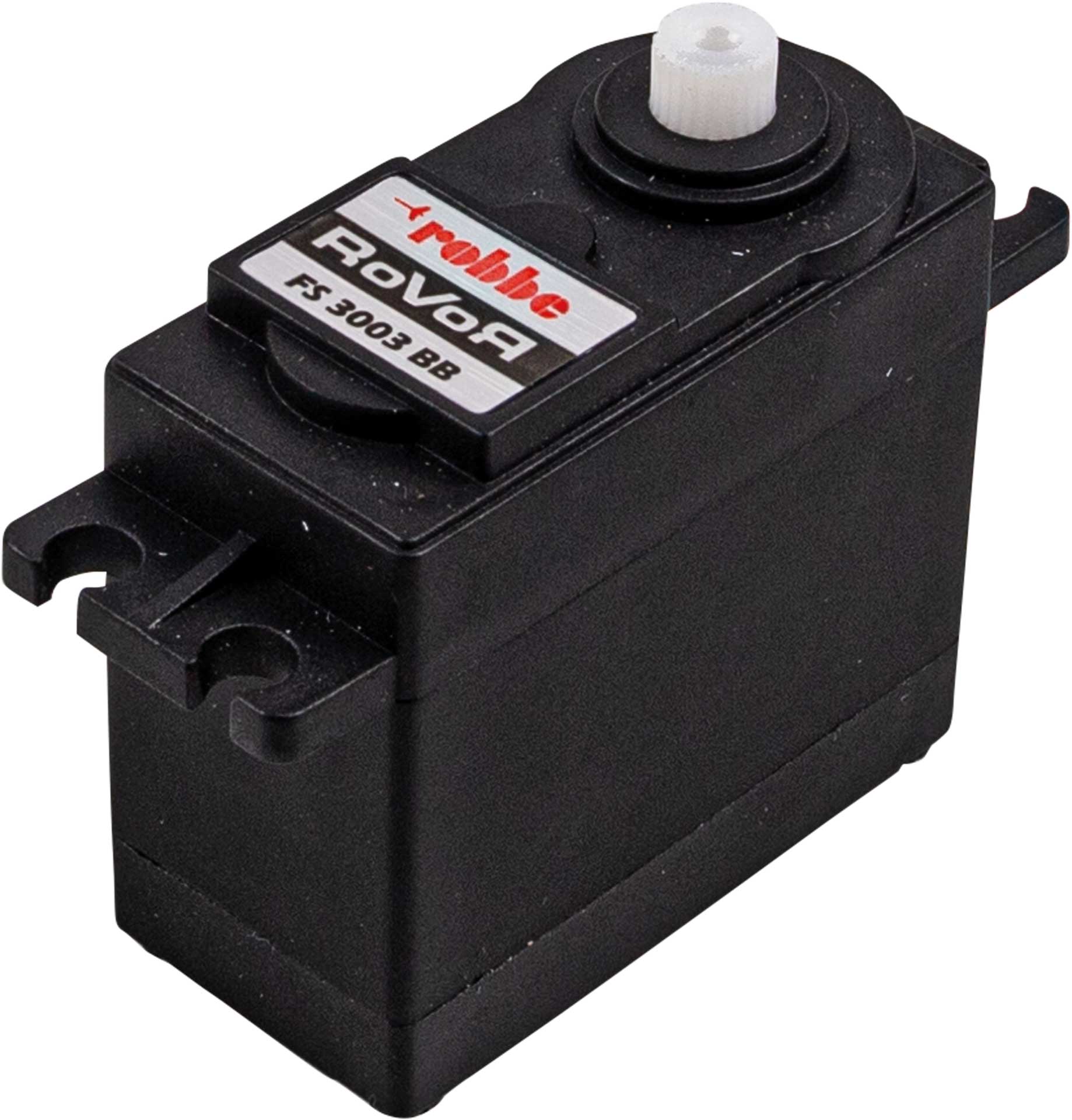

Robbe Modellsport ROVOR Servo FS 3003 BB
Product number:
S3003
| Bearing: | •• |
|---|---|
| Servo Speed sec./60° (6V) Analog: | 0,12 |
| Servo Speed sec./60° (7,4V) Analog: | 0,1 |
| Servo Torque kg/cm (6V) Analog: | 3 |
| Servo Torque kg/cm (7,4V) Analog: | 3,5 |
| Gearbox Type: | Plastic |
| Weight (g): | 36 |
| Length (mm): | 40,8 |
| Wide (mm): | 20,1 |
| Height (mm): | 40,5 |
| Servo type: | Analog HV |
| Gear tooth: | 25Z/5,9mm |
| Betriebspannung (V) Analog: | 6,0 - 7,4 |
Specifications:
- Type Standard
- Analog (A) yes
- Motor 3-pole
- Bearing 2
- Cable 300mm
- Connector JR/Futaba
- Operating temperature in °C -10° to +50° C
- Working angle 45° one-sided 500µsec
- Power consumption 6.0V 20mA standby, 160mA idle
- Power consumption 7.4V 20mA standby, 200mA idle
- Power consumption standstill 6.0V 0.8A
- Power consumption standstill 7.4V 0.9A
- Dead band 4 µsec
- Pulse (PWM) 1500 µsec
